Product Name
Product Code
Product Describtion
<p>Counter with mechanical impulses for production machines (forms, pistons, moulding forms, etc.) or all machines equipped with an opening/closing impulse. </p><p>No reset possible. </p><p><br></p><p>Each counter is equipped with a metal lock, which covers the fixing points; each lock is numbered and supplied together with the counter. </p><p>The counter is fixed with screws. The counter might alternatively be mounted externally. </p><p>The counter is protected by patent no. 200601581. </p><p><b>Ordering Example</b> : Z5260-L-B-D</p>
Product Image

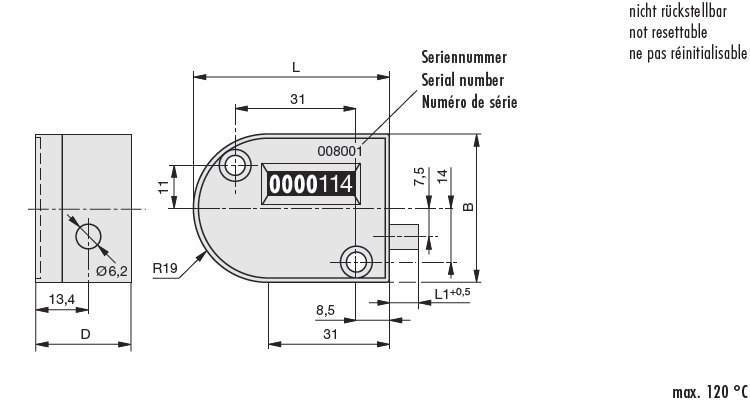

Sketch
Product Catalogue
1670401515-sn100141w.pdf
User manual
1670401515-sn100141w.pdf
